Victron 48V MultiPlus-II UL1741 3kVA 120V Inverter 35A Charger (UL)

SKU: PMP482305102
Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Front view display of the inverter by Victron Energy with no background.

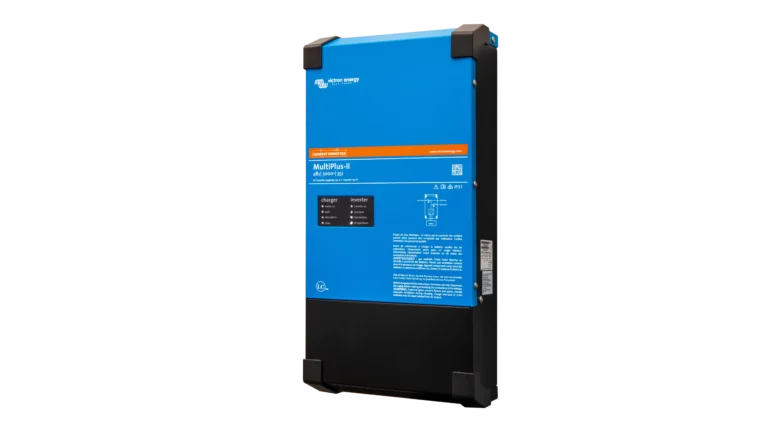

Victron Energy 24V MultiPlus 2kVA 120V Inverter 50A Charger (UL). This is a Right view display of the inverter by Victron Energy with no background.

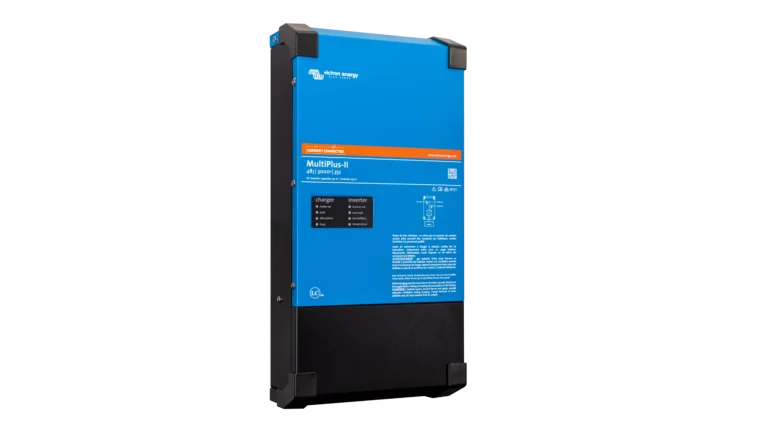

Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Left view display of the inverter by Victron Energy with no background.

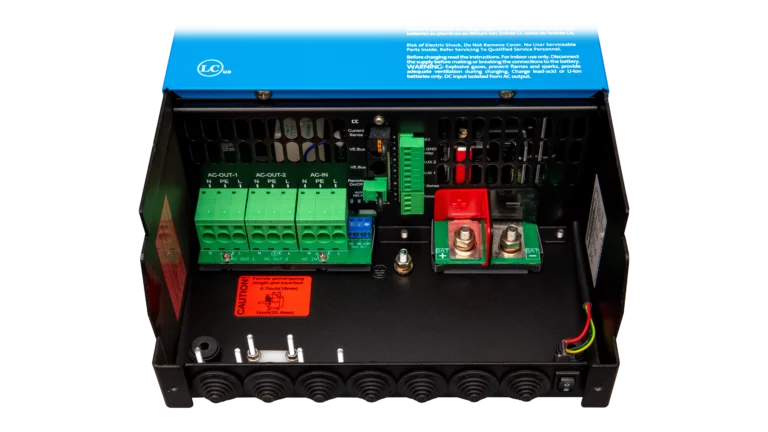

Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Internal view display of the inverter by Victron Energy with no background.
Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Front view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus 2kVA 120V Inverter 50A Charger (UL). This is a Right view display of the inverter by Victron Energy with no background.
Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Left view display of the inverter by Victron Energy with no background.
Victron Energy 48V MultiPlus-II 3kVA 120V Inverter 35A Charger - UL1741. This is a Internal view display of the inverter by Victron Energy with no background.
Data SheetUL CertificateManual

The Victron 48V MultiPlus-II 3kVA 120V Inverter offers 120V output with autonomous operation if the grid fails. Equipped with an ESS mode, this inverter is capable of grid feedback or just a backup solution. With a 7-millisecond transfer time from grid to inverter power, this system can work when you need it to. Now with a UL Listing!

Specifications:

  • 48V DC Battery voltage
  • 35A Battery charger
  • 120V output
  • Output capabilities: 120/208/240V
  • AC inputs: 1
  • AC Outputs: 2 – always on and programmable
  • Built-In Transfer Switch
  • 11W zero load power consumption
  • Dimensions (HxWxD): 21.1 x 10.8 x 5.8 inches
  • UL1741 listing and CSA-C22.2 No. 107.1:16 approved

5-Year Manufacturer Warranty

$1,184.90

Log in to check member price

6 in stock (Accepting backorders for additional units.)

Description

The 48V MultiPlus-II 3kVA can input up to 140 VAC and up to 120A of current. With its galvanically isolated output and a waveform as clean as AC grid power, the MultiPlus-II provides uninterrupted, high-quality power that keeps your devices running. Whether you’re on-grid or off-grid, it seamlessly transitions to meet your needs. In ESS mode it enables a grid-sellback function.

The 48V MultiPlus-II 3kVA has a 95% efficiency and a mere 11 Watts of idle draw. Built with a PowerAssist feature, this inverter can limit the amount of power the batteries take. It can manage the amount that the batteries are being charged/discharged.

Features:

  • 50A Feedthrough Current
  • 95% efficiency rating
  • Remote monitoring capabilities
  • Built-in ESS mode, allowing for sell-back capabilities
  • VE.Bus Communication Port
  • Able to be run in split-phase or 3-phase
  • Connect up to 6 units in parallel for enhanced power capacity
  • PowerAssist feature to prevent overloads when using limited AC sources
  • IP22 Protection

Recommended Cable Size: 6AWG

Recommended Accessories:

Additional information

Weight 49.22 lbs
Dimensions 23 × 14 × 10 in
Brand

Victron
Battery Voltage

48 Volts DC
