Victron 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger

SKU: PMP242305130
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Front view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Right view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Left view display of the inverter by Victron Energy with no background.

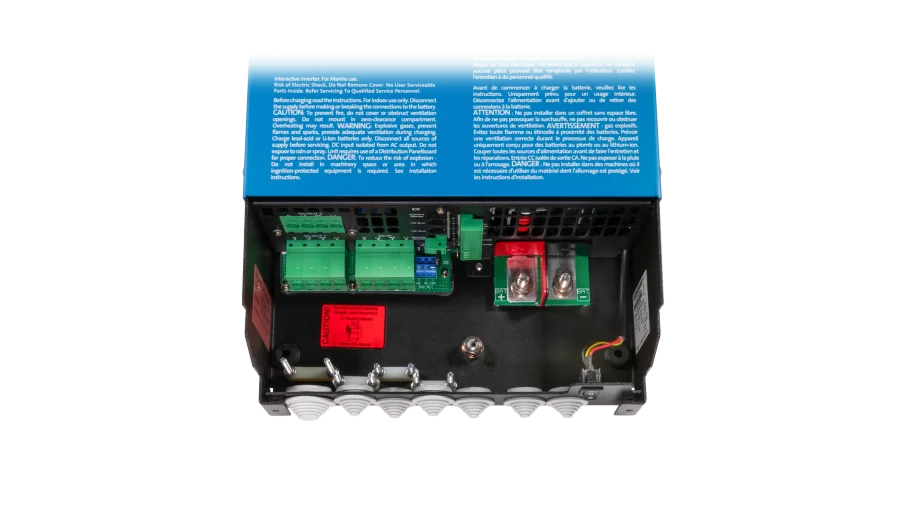

Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Internal view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Front view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Right view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Left view display of the inverter by Victron Energy with no background.
Victron Energy 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger. This is a Internal view display of the inverter by Victron Energy with no background.
Spec SheetManualDimensions

The Victron 24V MultiPlus-II 3kVA 2x120V Inverter is good for mobile or residential applications as an ESS system or a UPS. This inverter has a two-pole transfer switch, allowing for multiple AC inputs. With a 94% efficiency rating, the MultiPlus-II can perform in any needed scenario.

Specifications:

  • 24V DC battery voltage
  • 70A battery charger
  • 120V output
  • Output Compatibility: 120/208/240V
  • AC Inputs: 2
  • AC Outputs: 2 (Always-on and programmable output)
  • Built-In Transfer Switch
  • Weight: 41.9 lbs.
  • Dimensions (HxWxD): 23 x 11 x 6 inches

    5-Year Manufacturer Warranty

$1,133.90

Log in to check member price

2 in stock (Accepting backorders for additional units.)

Description

The Victron 24V MultiPlus-II 3kVA 2X120V has a 94% efficiency rating and a 13W idle draw. With a built-in PowerAssist, the inverter can help out when the AC input fails by drawing on the battery. Or if needed, completely switch off the grid and run solely on battery power. In an on-grid scenario, the ESS mode allows for grid-sellback functionality. With a two-pole transfer switch, the MultiPlus-II 2x120V can have two AC inputs.

The 24V MultiPlus-II offers clean uninterrupted power to keep your devices running. Being able to be used in a UPS function with less than 20 millisecond transfer time, all that is needed is to turn the setting on. This functionality makes the 24V MultiPlus-II line good for both mobile and residential systems.

 Features:

  • ESS Capability
  • Zero Load Power: 13W
  • 24V DC battery voltage and 70A battery charger
  • 120V output with the ability to stack up to 6 units for increased capacity and 120/208/240V capability
  • Two AC inputs and outputs, including an always-on output and a programmable output
  • Built-in transfer switch and 50A feedthrough current for seamless power management

Inverters purchased through Current Connected are updated with the latest firmware (as of order date) and are custom-programmed for LiFePO4 (US customers only). For any additional config customization please let us know in your order notes.

Recommended Accessories:

Additional information

Weight 54.3 lbs
Dimensions 25 × 14 × 10 in
Brand

Victron
Battery Voltage

24 Volts DC

Videos



Why Choose Victron?

Victron Energy is a globally recognized leader in technical innovation, renowned for producing high-quality, reliable products crafted with meticulous attention and precision, ensuring superior performance and durability.

Established in the Netherlands in 1975, Victron Energy manufactures dependable off-grid battery inverter chargers and affordable solar controllers. In the automotive, RV, and boating market, they stand out as one of the top-quality manufacturers through their commitment to continuous improvement and development of their products. Victron frequently introduces innovative products and enhanced hardware/software through free updates, always staying on the forefront of independent energy systems.

With over 45 years of expertise in designing robust off-grid systems, Victron excels in delivering solutions that prioritize reliability. Their commitment is reinforced by cutting-edge software, user-friendly monitoring apps, a network of skilled professionals, and widespread repair centers, ensuring unparalleled support for their products. Victron equipment surpasses performance expectations and boasts an extended life cycle that goes beyond industry standards. They back their products with a 5-year warranty and efficient repair policies, providing you with the assurance and protection necessary for your investments.

Choose Victron Energy for reliable, innovative, and long-term power solutions. Experience the difference that their industry-leading products and expertise can make for your energy needs.

Reviews

There are no reviews yet.

Be the first to review “Victron 24V MultiPlus-II 3kVA 2x120V Inverter 70A Charger”

Please login to post questions

Question:

Can I connect 110 and 220V devices at the same time?
hedelima
04-May-2024

Answer:

Yes, but only when there is 240V being inputted. The 240V is only available when doing passthrough.

Question:

Is it compatible with A/C mini split 12000BTU?
hedelima
08-May-2024

Answer:

Yes, as it output 120VAC which is what the Mini Splits needs.

Question:

Is this unit capable of charging 24v batteries with only a single 120vac input or one phase of a split phase of a 240vac input?
mike.repucci
09-Oct-2024

Answer:

Yes, this unit can charge the batteries with either 120V or 240V split-phase.

Question:

Can I use this 24V 2 X 120 for an off grid shop then move it into my rv with that has 50amp service when I'm ready to go full time? how would I wire the Inverterer now to just a 120v generator impute if it's 2X120 ?
mjqauto21
03-Nov-2024

Answer:

Yes, the 24V can intake 120V power when wired correctly. The best example of how to do so is within the manual or the Victron Wiring Unlimited. You simply wire the single hot in, and ensure the Victron is programmed to only look for 120V.
