Victron Lynx Distributor – Power Distribution System (M8)

SKU: LYN060102000
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Victron Lynx Distributor
Manual

*REQUIRES LYNX SHUNT OR LYNX BMS FOR BLOWN FUSE NOTIFICATION TO WORK*

Features:

  • Modular busbar system
  • 1000A Rated
  • Incorporates DC connections, distribution, fusing, battery monitoring, and Lithium battery management
  • Positive busbar: 4 fuse-protected connections with fuse monitoring
  • Negative busbar: 4 connections and ground connection
  • Designed to hold MEGA Fuses
  • Compatibility: Works on 12V, 24V, and 48V systems
  • Fuse status communication with Lynx Smart BMS
  • Monitoring and setup with VictronConnect App when connected to Lynx Smart BMS
  • Up to 4 Lynx Distributors can be monitored with a GX Device
  • Fuse and operational status communication with Lynx Smart BMS
  • Distributor fuses are sold separately
  • M8 Interconnecting hardware

$201.45

Log in to check member price

Out of stock

Description

Victron Lynx Distributor

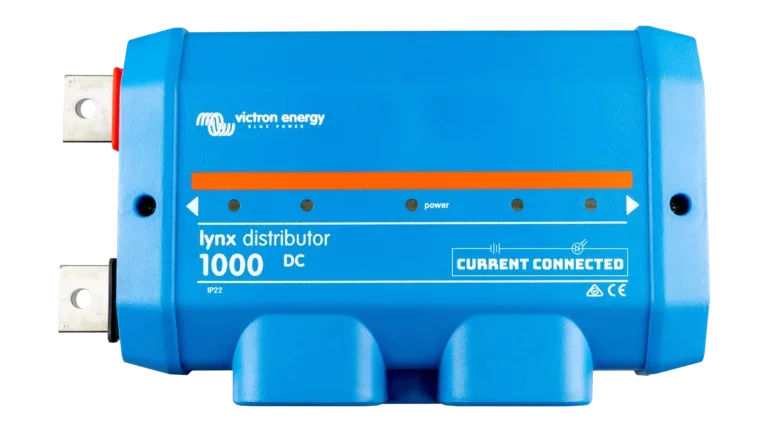

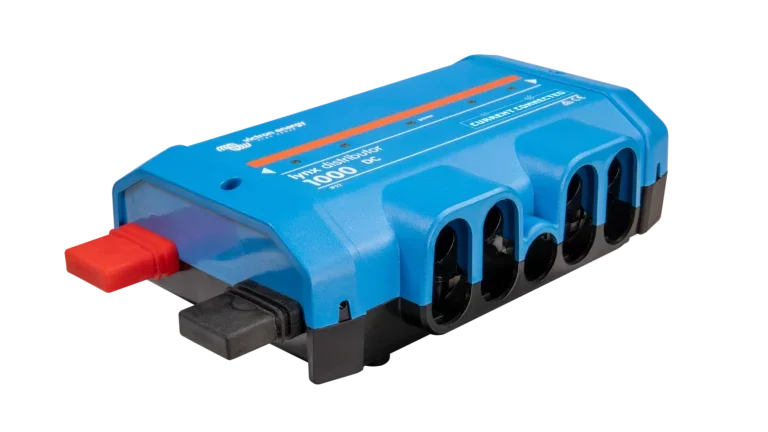

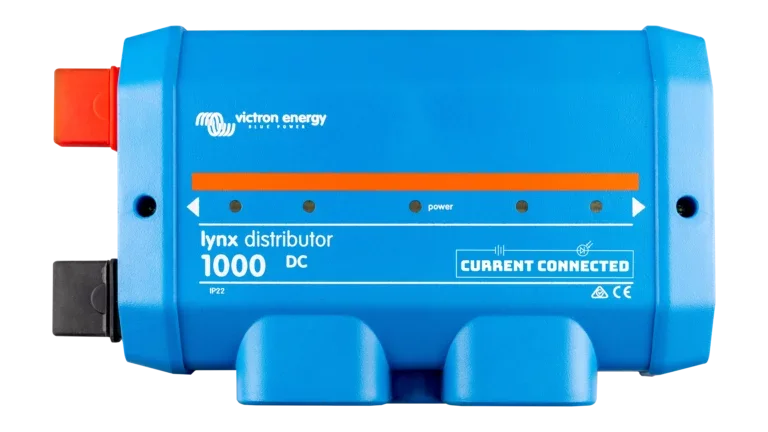

The Victron Lynx Distributor is a modular busbar system. Designed to integrate with the Lynx Power Distribution System and VictronConnect App for monitoring and control.

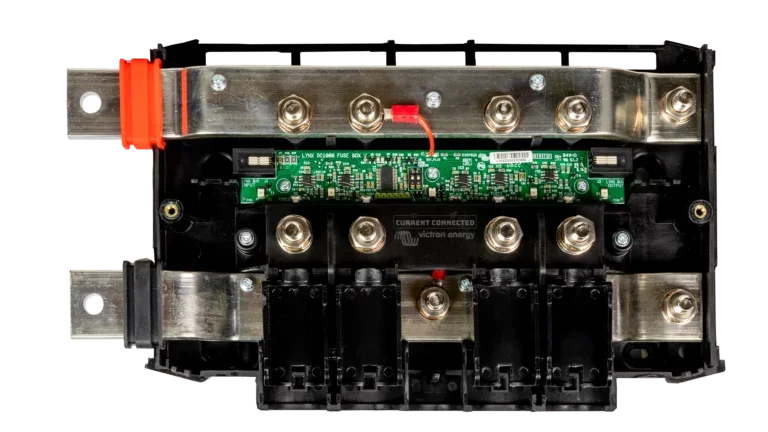

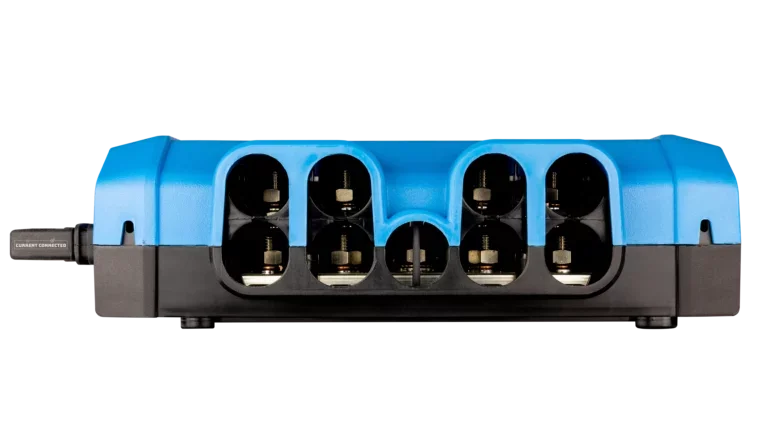

The Lynx Distributor has a positive and a negative busbar with multiple connections. The positive busbar has four fuse-protected connections. Each fuse is monitored, an LED indicator on the front provides real-time updates. The negative busbar has four connections and a ground connection.

You can use the VictronConnect App to monitor and configure your distribution setup. You can monitor up to four Lynx Distributors using a GX Device when connected to a Lynx Smart BMS. The Lynx Smart BMS, integrated with the Lynx Distributor, allows you to create alarms and receive notifications.

Recommended Accessories:

Additional information

Brand

Victron
Interconnection Bolt Size

M8, M10

FAQ

Q – There is a small 4-pin cable shipped with the Distributor – I can only assume that the cable interconnects between the Shunt and Distributor?

A – Yes, but this has only to power the LEDs on the distributor, there is no other function for this at the moment.

Q – The Distributor has a DIP switch. What are the settings?

A – That’s for manual settings, please don’t touch as the system will auto configure (up to 32 battery’s )

Q – The Distributor has a 6-pin header block. What is it for?

A – In the future, the read out of fuses, but this is not supported yet.

Reviews

There are no reviews yet.

Be the first to review “Victron Lynx Distributor – Power Distribution System (M8)”

Please login to post questions

Question:

What size lugs are needed to connect to the positive and negative stud on the Lynx Distribution System?
Bill_A
24-Jan-2023

Answer:

Great question! 5/16" lugs would be best.
