EG4 LL-S 48V 600Ah 30.7kWh Fully Loaded Rack Battery Kit

SKU: EG4LL-6KIT48
EG4 LL-S 48V 600Ah 30.7kWh Fully Loaded Rack Battery Kit

The EG4 Server Rack Battery kit is perfect for any system that needs a movable rack because it includes wheels that attach to the bottom of the rack. This kit can hook up to any inverter that works with EG4 batteries. This kit typically comes with 30.72kWH of batteries completely filling the included 6 slot rack. The default configuration includes all the needed wiring and cables to hook into each battery as well as the inverter, plus the needed communication cables so that way you can properly monitor what is going on with the battery bank.

From: $8,343.00

EG4 LL-S 48V 100Ah Server Rack Battery - UL1973, UL9540A × 6



Specifications:

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Kilowatt-hour(s): 5.12kWh
  • Dimensions: 17.7" x 19.3" x 6.1 inches
  • Operating Power Consumption: <25mA
  • Temperature Protection
  • Cell & Module Voltage Protection
  • Short Circuit Protection: (>250A <0.1mS)
  • PC Monitoring Software Included
  • Lifetime firmware updates
  • Entire Battery UL Rated (UL 1973 and UL 9540A)
  • EMP Hardened (Both old and new units)

In stocks-Ships within 24 hours

$1,299.00 each

Available on backorder

EG4 6-Slot Enclosed Battery Rack (Pre-Assembled) - Welded

  • Dimensions: 24 in x 26 in x 46 in
  • Material: Heavy-duty steel
  • Finish: Durable black powder-coated finish
  • Heavy duty busbars
  • Lockable door
  • Ventilated for optimal airflow
  • Easy cable Routing
  • Removable casters
$549.00

21 in stock (Accepting backorders for additional units.)

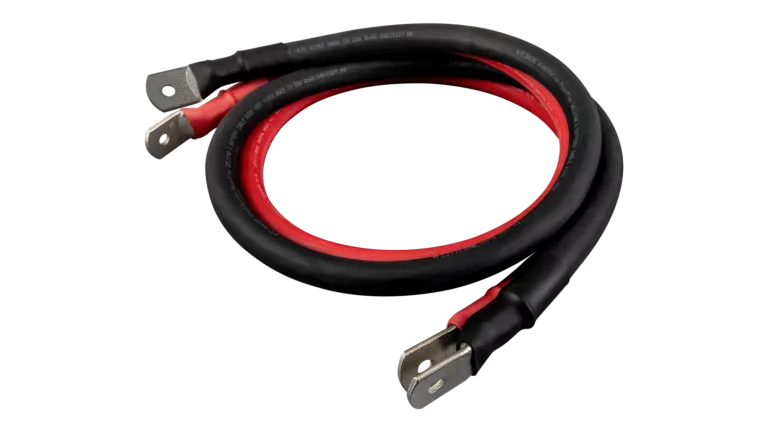

4/0 AWG Cables

4/0 AWG Pure Copper Battery Cables - Red and Black

  • Set includes one black cable and one red cable
  • 100% fine stranded PURE COPPER cable for high amperage applications
  • Copper, tinned coated lugs
  • Polyolefin glue-lined heat shrink tubing
  • Cables are USA-made and assembled in-house utilizing a 6-point, 10 ton hydraulic press
  • Also available in: 6AWG, 2 AWG, 1/0 AWG, 2/0 AWG
  • Single Jumpers also available:  2 AWG, 1/0 AWG, 2/0 AWG, 4/0 AWG

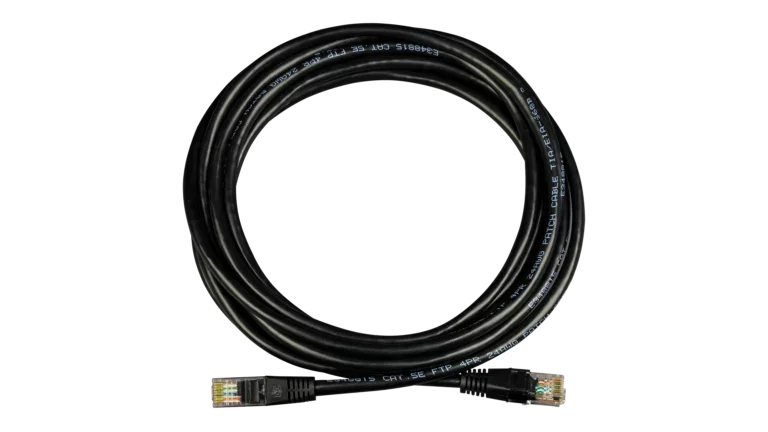

RJ45/CAT5e Patch Cables - From 1ft to 25ft

Specifications:

  • High-precision, CAT5e, ANSI/TIA-568-C.2 Compliant, ETL Verified
  • UTP 24AWG stranded conductors for flexibility and minimum crosstalk
  • 50-micron gold-plated contacts for high-speed data transfer and corrosion resistance
  • Molded, snag-less strain relief boots for long-lasting, durable connections
  • Compatible with SOK 48V100Ah Server Rack Battery & Victron VE.BUS / VE.CAN products

Available on backorder

Recommended Accessories:

Additional information

EG4 LL-S 48V 100Ah Server Rack Battery - UL1973, UL9540A

Weight 103 lbs
Dimensions 21 × 21 × 9 in
Brand

EG4 Electronics
Battery Voltage

48 Volts DC
Capacity (Amp-Hours)

100Ah
Form Factor

19" EIA Server Rack

EG4 6-Slot Enclosed Battery Rack (Pre-Assembled) - Welded

Weight 100 lbs
Dimensions 27 × 25 × 48 in
Brand

EG4 Electronics

4/0 AWG Pure Copper Battery Cables - Red and Black

Weight N/A

RJ45/CAT5e Patch Cables - From 1ft to 25ft

Weight N/A
