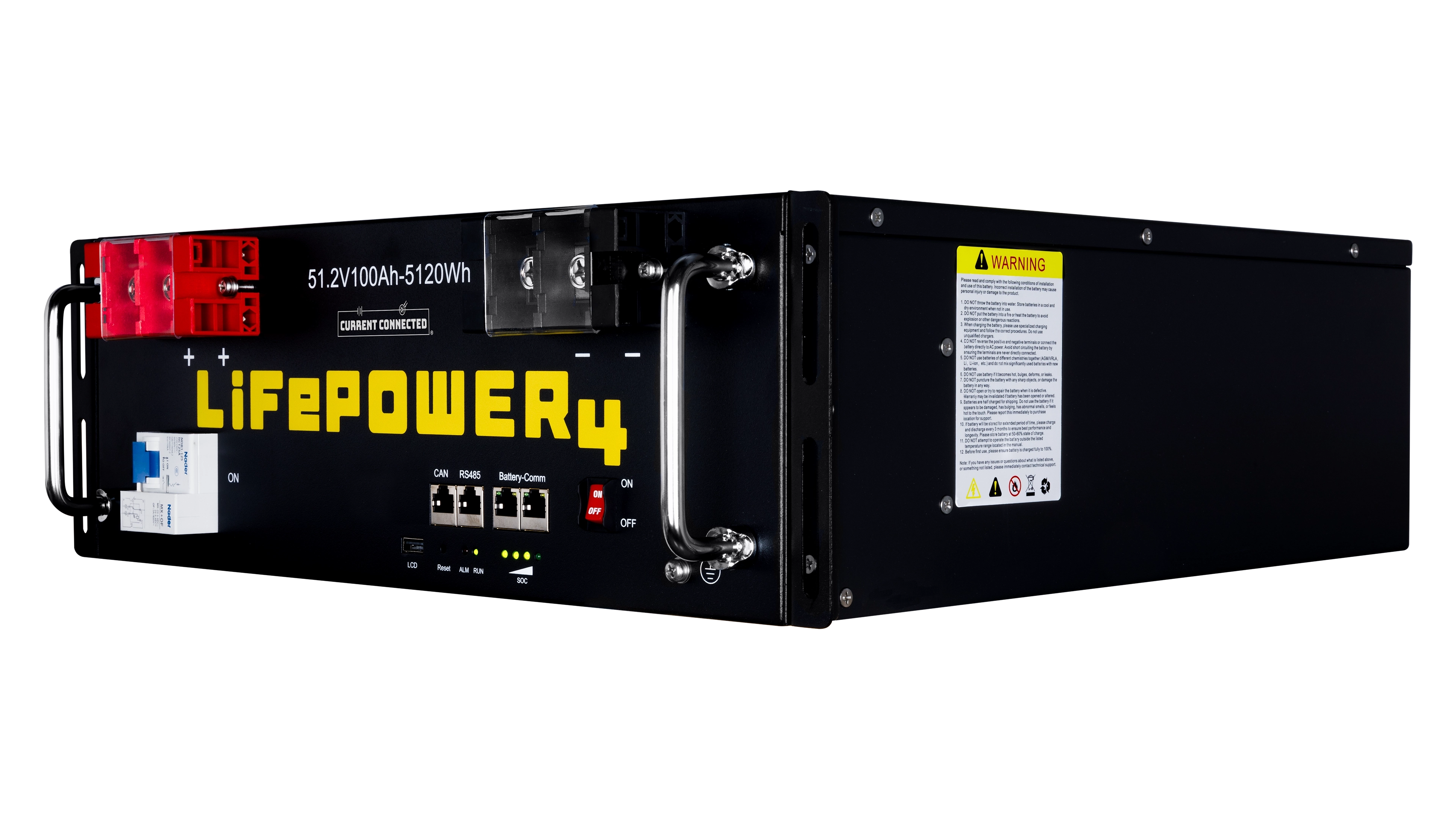

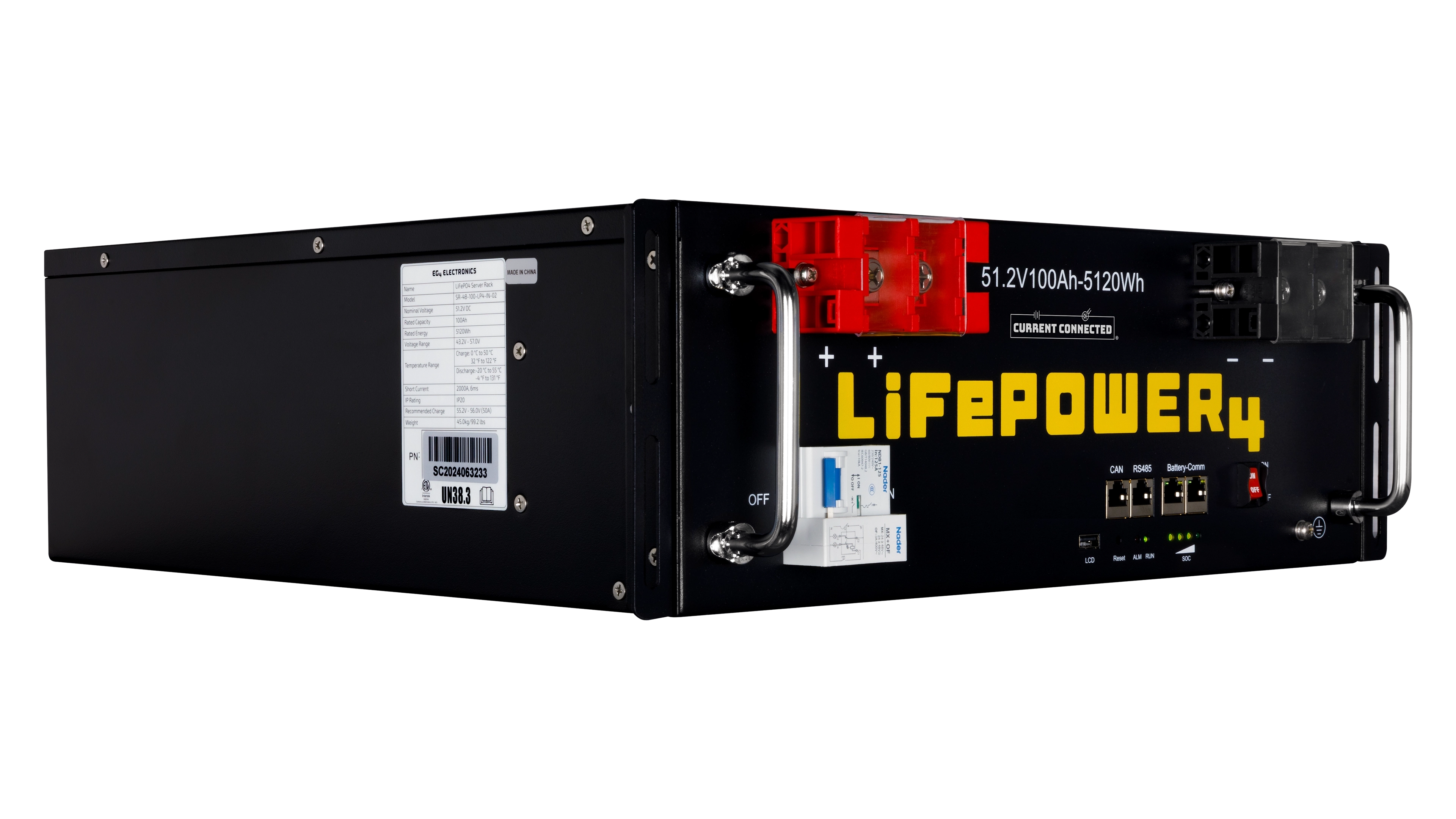

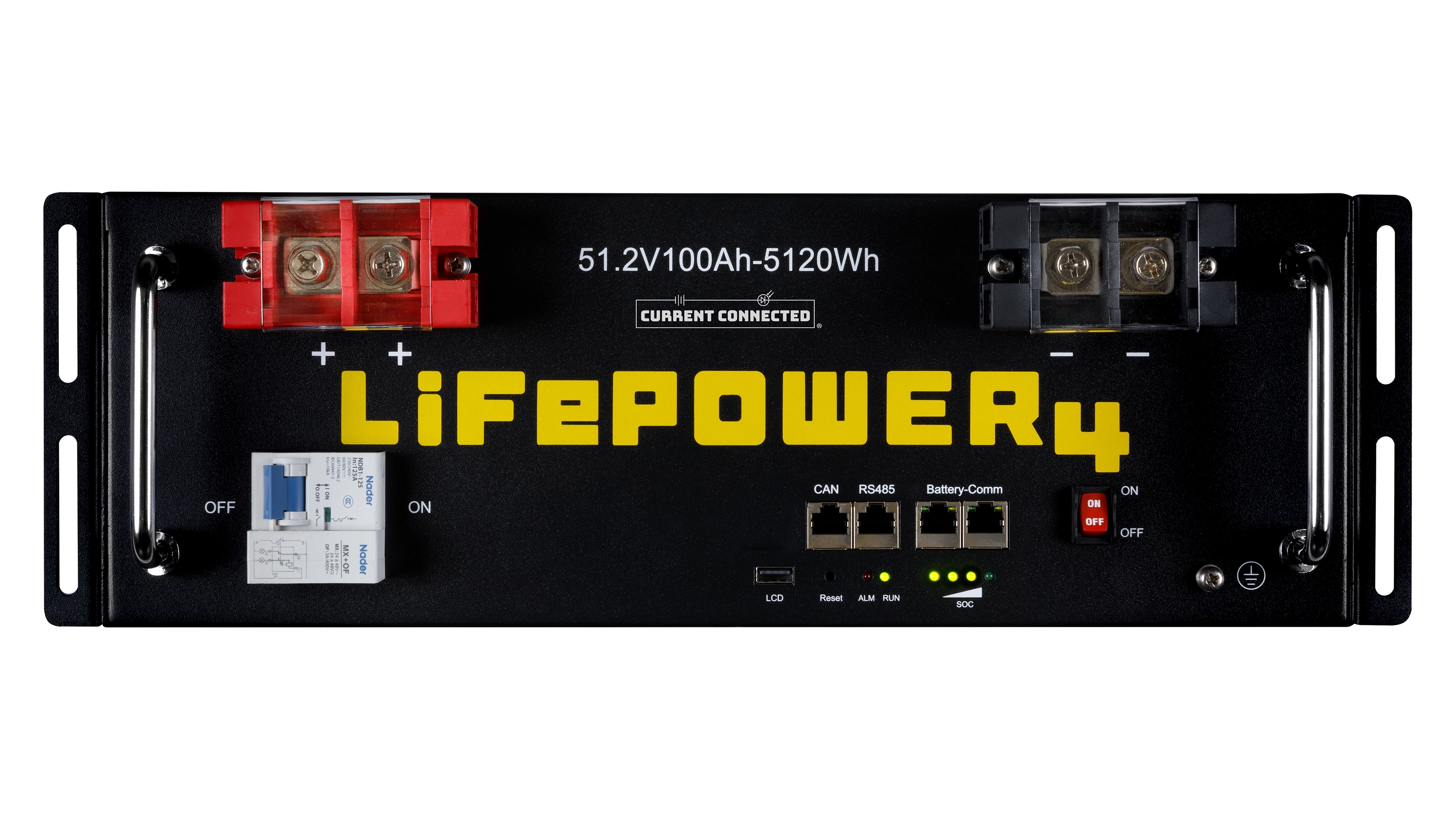

EG4 LifePower4 V2 Lithium Battery – 48V 100AH – Server Rack Battery – UL1973, UL9540A

SKU: EG4LP48V100A
Spec SheetManualV1 and V2 Comparrison

The EG4 LifePower4 V2 Battery has a 99% Efficiency for LiFeP04 16-cell pack. With more energy density in a smaller design, the LifePower4 battery is meant to last up to 10 years. It has 2 positive and negative terminals that can accept up to 3/0 AWG compression lugs. This battery is perfect for residential and off-grid systems that need a cheaper battery with CANBUS communication.

Specifications:

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Kilowatt-hour(s): 5.12kWh
  • Temperature Protection
  • Cell & Module Protection
  • Dimensions (HxWxD): 6.1 x 17.4 x 18.5 inches
  • Operating Power Consumption: <14mA
  • Entire Battery UL Rated (UL 1973 and UL 9540A)

$1,199.00

Log in to check member price

64 in stock (Accepting backorders for additional units.)

Description

The EG4 LifePower4 V2 Lithium Battery is rated for 100Ah with a design life of 10-20 years. With a built-in BMS, it has voltage, current, temperature, and health management. The V2 comes with rapid shutdown both via EG4 inverters and an external button. This newer version also comes with CANBUS communication and remote updating via any EG4 inverter with communication. This battery has a 3.5U design, allowing it to fit into a variety of different racking applications. With a 10-year warranty, these batteries are rated to have a cycle life of 10-20 years.

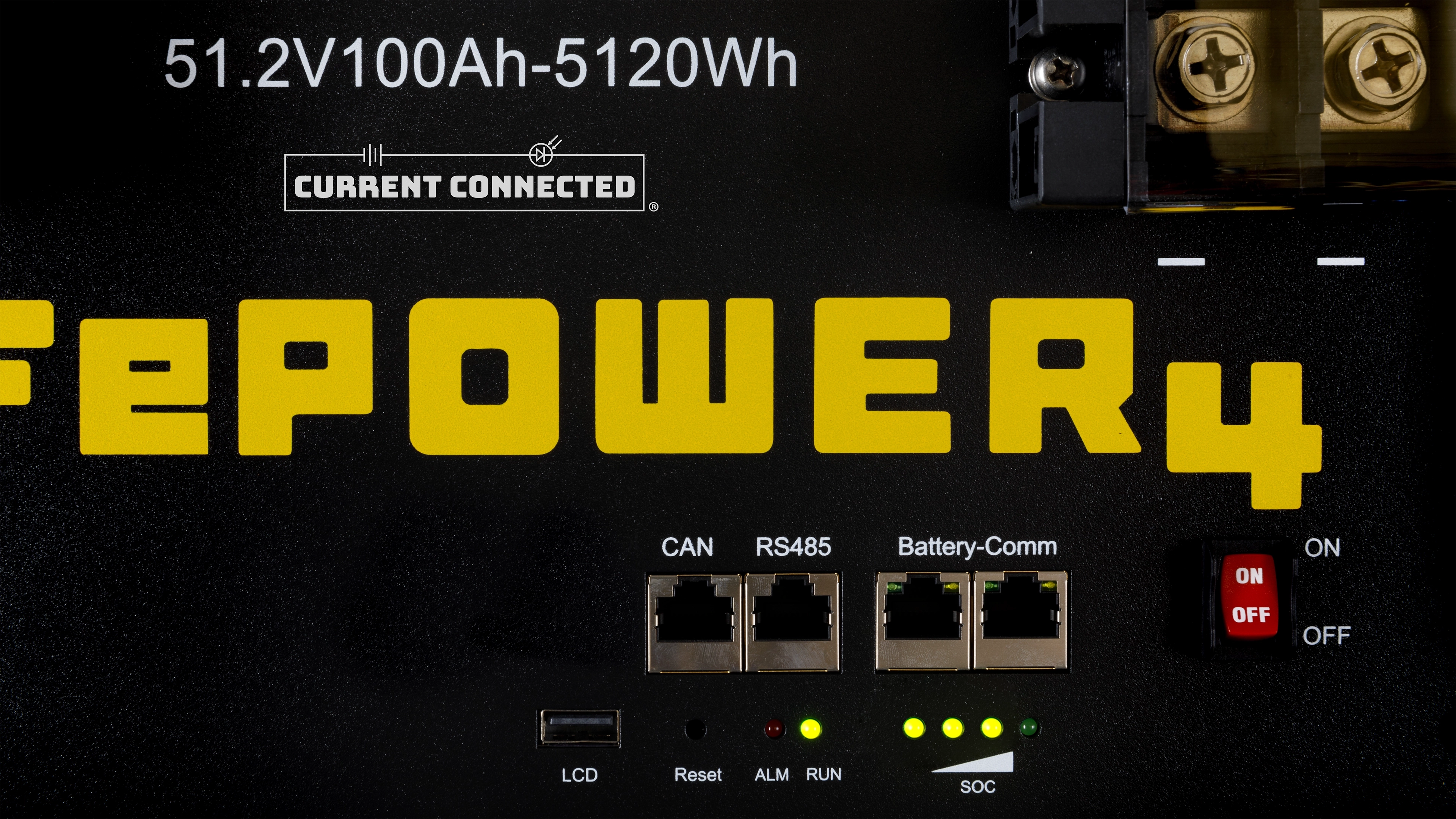

The Version 2 LifePower4 battery has better communication abilities with a new CANBMS communication port as well as more dip switch ports. With the dip switches, it allows up to 64 of these batteries to be paralleled. These batteries also can communicate with any EG4 inverters allowing rapid shutdown control from the inverter. Overall it is an upgrade to the original design still at a low price.

Recommended Accessories:

Additional information

Weight 104 lbs
Dimensions 21 × 21 × 9 in
Brand

EG4 Electronics
Battery Voltage

48 Volts DC
Form Factor

19" EIA Server Rack
Capacity (Amp-Hours)

100Ah

Reviews

There are no reviews yet.

Be the first to review “EG4 LifePower4 V2 Lithium Battery – 48V 100AH – Server Rack Battery – UL1973, UL9540A”

Please login to post questions

Question:

Can this battery be mounted vertically vs in the horizontal position?
[email protected]
08-Apr-2024

Answer:

This battery can be mounted both vertically and horizontally with no issues.
